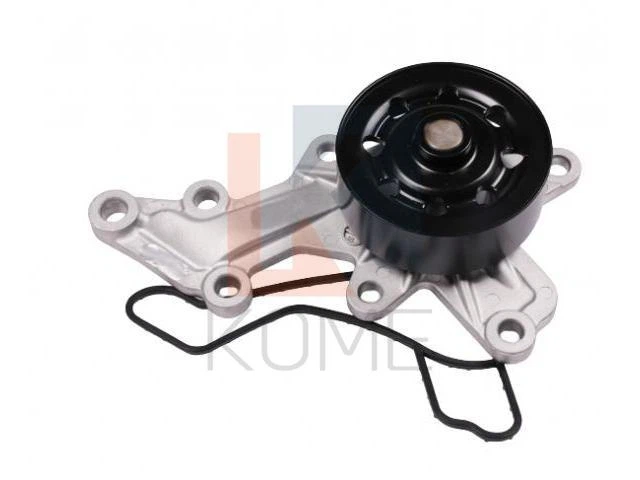

16100-B9490 16100-80013 Auto Water Pump For Toyota Yaris Engine 2NR-FKE

AISIN : WPT-198 CONTINENTAL CTAM : WPS3131 DOLZ : T263 GK : 987585 HEPU : P7585 HERTH+BUSS JAKOPARTS : J1512062

Product Introduction

OE Numbers
TOYOTA : 16100-09730
TOYOTA : 16100-09750
TOYOTA : 16100-0Y100
TOYOTA : 16100-80013
TOYOTA : 16100-B9490
Reference Numbers
AISIN : WPT-198
CONTINENTAL CTAM : WPS3131
DOLZ : T263
GK : 987585
HEPU : P7585
HERTH+BUSS JAKOPARTS : J1512062

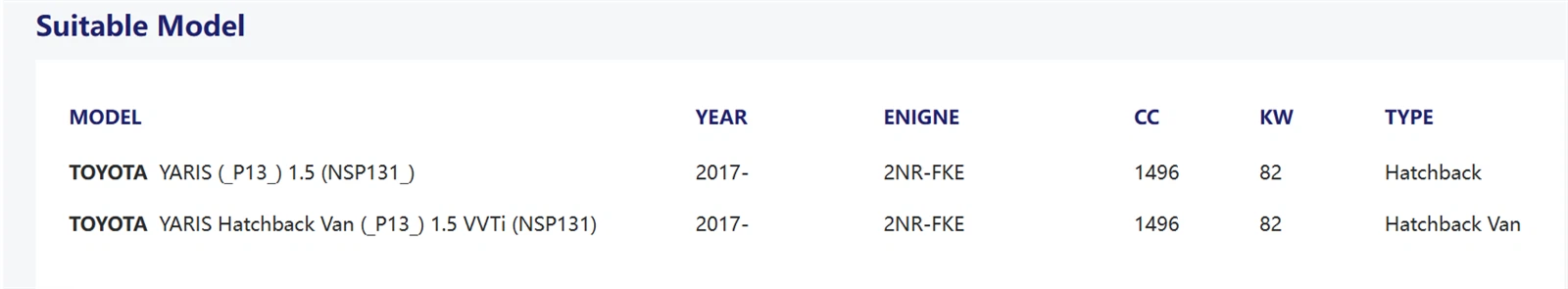

Suitable Model
MODEL
YEAR
ENIGNE
CC
KW
TYPE
TOYOTA YARIS (_P13_) 1.5 (NSP131_)
2017-
2NR-FKE
1496
82
Hatchback
TOYOTA YARIS Hatchback Van (_P13_) 1.5 VVTi (NSP131)
2017-
2NR-FKE
1496
82
Hatchback Van





Professional Manufacturer Of The Auto Water Pump

Empowering your flow, we engineer excellence into every auto water pump.

16100-B9490 16100-80013 Auto Water Pump For Toyota Yaris Engine 2NR-FKE Reference Lookup

Find the right Auto Water Pump by entering the OEM number or cross reference number.
We are currently updating our Auto Water Pump cross reference/OEM number database, will improve the Auto Water Pump Search Function Soon.
Please send us your list and we will do the search for you manually.

Request a Call/Email Back

16100-B9490 16100-80013 Auto Water Pump For Toyota Yaris Engine 2NR-FKE Application Areas

Working principle of automobile water pump

The water pump bearing and impeller are driven by the pulley to rotate. The coolant in the water pump is driven by the impeller to rotate together. Under the action of centrifugal force, it is directed to the edge of the water pump housing, generating a certain pressure at the same time, and then flows out from the water outlet or water pipe.
As we all know, damage to the water pump will cause the engine temperature to rise abnormally, causing abnormal wear and tear of components. In severe cases, the entire engine may be scrapped.



Symptoms of damaged car water pump

1. Unstable idle speed
Since the car water pump is connected to the belt box to extract cold water from the water tank, if the rotation resistance of the water pump fails, it will cause the car’s speed to jump and become unstable after starting.

2. Coolant leakage
The engine near the water pump is prone to water leakage. At this time, the coolant will leave water marks on the vent hole of the water pump. An engine lacking coolant will have a “high fever”. When the wear is severe, it will smoke or even catch fire.

3. Make abnormal noises
If there is obvious noise in the water pump, it means that it is damaged internally, such as the bearing is damaged or the impeller becomes loose during rotation and gradually separates from the rotating shaft, thus causing this phenomenon.

Therefore, if the water pump is broken, it must be replaced in time to avoid causing greater losses.
