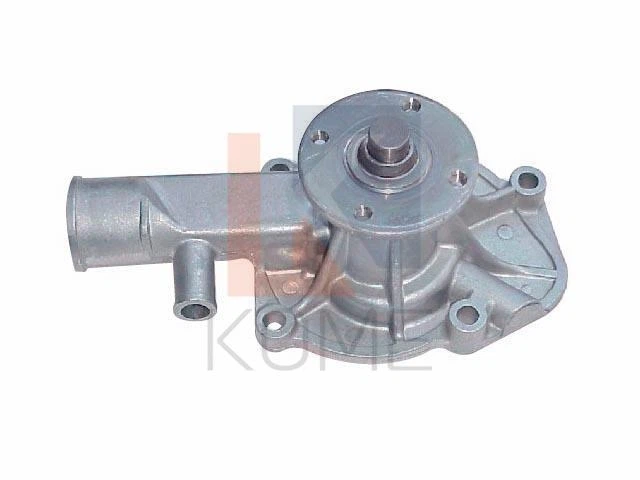

16100-88260 AW1520 WPT-087 AUTO WATER PUMP FOR TOYOTA CELICA ENGINE 2T 2TB

AIRTEX : 1520
AISIN : WPT087AISIN : WT121ASHIKA : 3502202DELPHI : WP2036GERI : 329020GRAF : PA217HEPU : P769HK : W18016JAPANPARTS : PQ202KWP : 10217METELLI : 24-0217QUINTON HAZELL : QCP2851Saleri SIL : PQ202SKF : VKPC91412TRISCAN : 860013989

Product Introduction

1

1-43b102e6ecea8

1

OE Numbers
TOYOTA : 1610088260
TOYOTA : 1611088260
Reference Numbers
AIRTEX : 1520
AISIN : WPT087
AISIN : WT121
ASHIKA : 3502202
DELPHI : WP2036
GERI : 329020
GRAF : PA217
HEPU : P769
HK : W18016
JAPANPARTS : PQ202
KWP : 10217
METELLI : 24-0217
QUINTON HAZELL : QCP2851
Saleri SIL : PQ202
SKF : VKPC91412
TRISCAN : 860013989

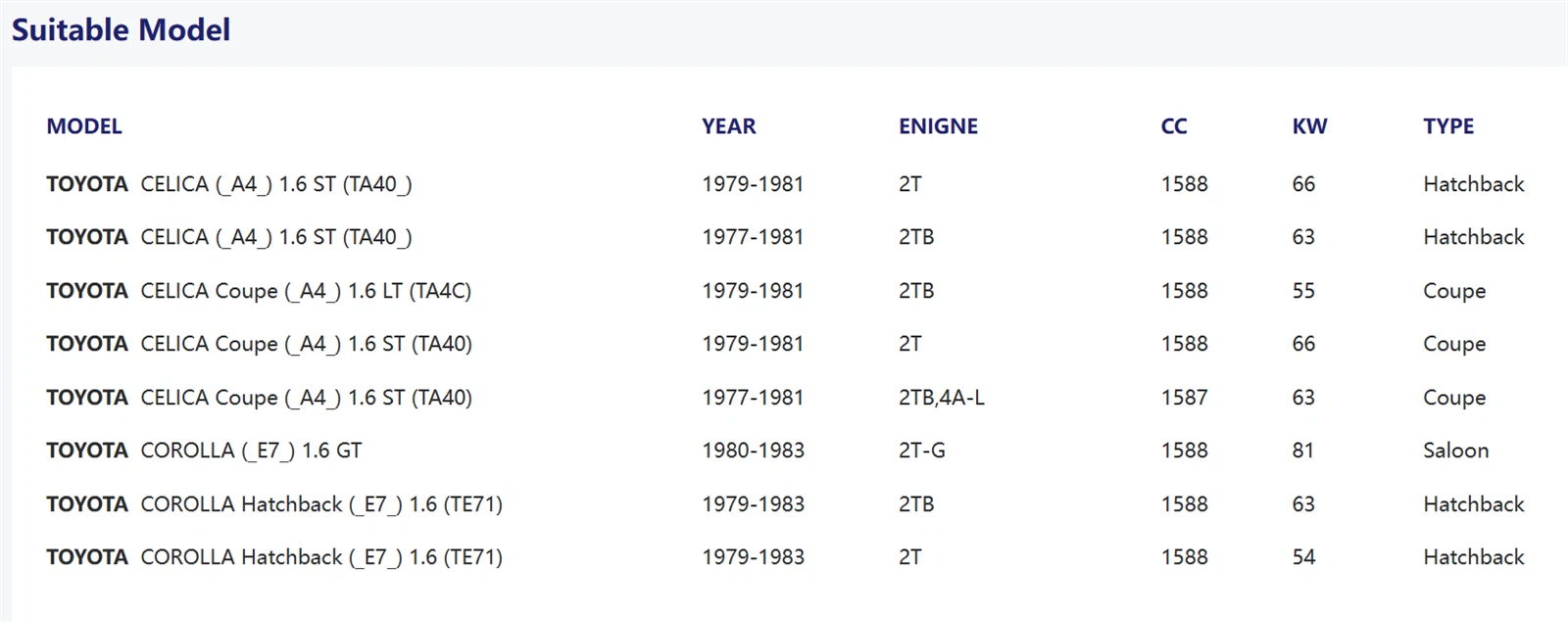

Suitable Model
MODEL
YEAR
ENIGNE
CC
KW
TYPE
TOYOTA CELICA (_A4_) 1.6 ST (TA40_)
1979-1981
2T
1588
66
Hatchback
TOYOTA CELICA (_A4_) 1.6 ST (TA40_)
1977-1981
2TB
1588
63
Hatchback
TOYOTA CELICA Coupe (_A4_) 1.6 LT (TA4C)
1979-1981
2TB
1588
55
Coupe
TOYOTA CELICA Coupe (_A4_) 1.6 ST (TA40)
1979-1981
2T
1588
66
Coupe
TOYOTA CELICA Coupe (_A4_) 1.6 ST (TA40)
1977-1981
2TB,4A-L
1587
63
Coupe

2

3

Professional Manufacturer Of The Auto Water Pump

Empowering your flow, we engineer excellence into every auto water pump.

16100-88260 AW1520 WPT-087 AUTO WATER PUMP FOR TOYOTA CELICA ENGINE 2T 2TB Reference Lookup

Find the right Auto Water Pump by entering the OEM number or cross reference number.
We are currently updating our Auto Water Pump cross reference/OEM number database, will improve the Auto Water Pump Search Function Soon.Please send us your list and we will do the search for you manually.

Request a Call/Email Back

16100-88260 AW1520 WPT-087 AUTO WATER PUMP FOR TOYOTA CELICA ENGINE 2T 2TB Application Areas

Working principle of automobile water pump

The water pump bearing and impeller are driven by the pulley to rotate. The coolant in the water pump is driven by the impeller to rotate together. Under the action of centrifugal force, it is directed to the edge of the water pump housing, generating a certain pressure at the same time, and then flows out from the water outlet or water pipe.
As we all know, damage to the water pump will cause the engine temperature to rise abnormally, causing abnormal wear and tear of components. In severe cases, the entire engine may be scrapped.

Symptoms of damaged car water pump

1. Unstable idle speed
Since the car water pump is connected to the belt box to extract cold water from the water tank, if the rotation resistance of the water pump fails, it will cause the car’s speed to jump and become unstable after starting.2. Coolant leakageThe engine near the water pump is prone to water leakage. At this time, the coolant will leave water marks on the vent hole of the water pump. An engine lacking coolant will have a “high fever”. When the wear is severe, it will smoke or even catch fire.3. Make abnormal noisesIf there is obvious noise in the water pump, it means that it is damaged internally, such as the bearing is damaged or the impeller becomes loose during rotation and gradually separates from the rotating shaft, thus causing this phenomenon.Therefore, if the water pump is broken, it must be replaced in time to avoid causing greater losses.
