16100-09470 16100-09471 16100-39406 Auto Water Pump For Toyota Tacoma Engine 1GR-FE
ACDelco : 252-892 AIRTEX : AW6037 BECK/ARNLEY : 131-2315 BORTEC : 20347 CARDONE : 5543161 CARDONE : 571633 GATES-MX : 43528 GMB : 170-3940 GMB : 170-3940 NAPA : 43528 PART MASTER : 3-1981 US MOTOR : US6037
Product Introduction
| OE Numbers |
| TOYOTA : 1610009470 |
| TOYOTA : 1610009471 |
| TOYOTA : 1610039405 |
| TOYOTA : 1610039406 |
| Reference Numbers |
| ACDelco : 252-892 |
| AIRTEX : AW6037 |
| BECK/ARNLEY : 131-2315 |
| BORTEC : 20347 |
| CARDONE : 5543161 |
| CARDONE : 571633 |
| GATES-MX : 43528 |
| GMB : 170-3940 |
| GMB : 170-3940 |
| NAPA : 43528 |
| PART MASTER : 3-1981 |
| US MOTOR : US6037 |

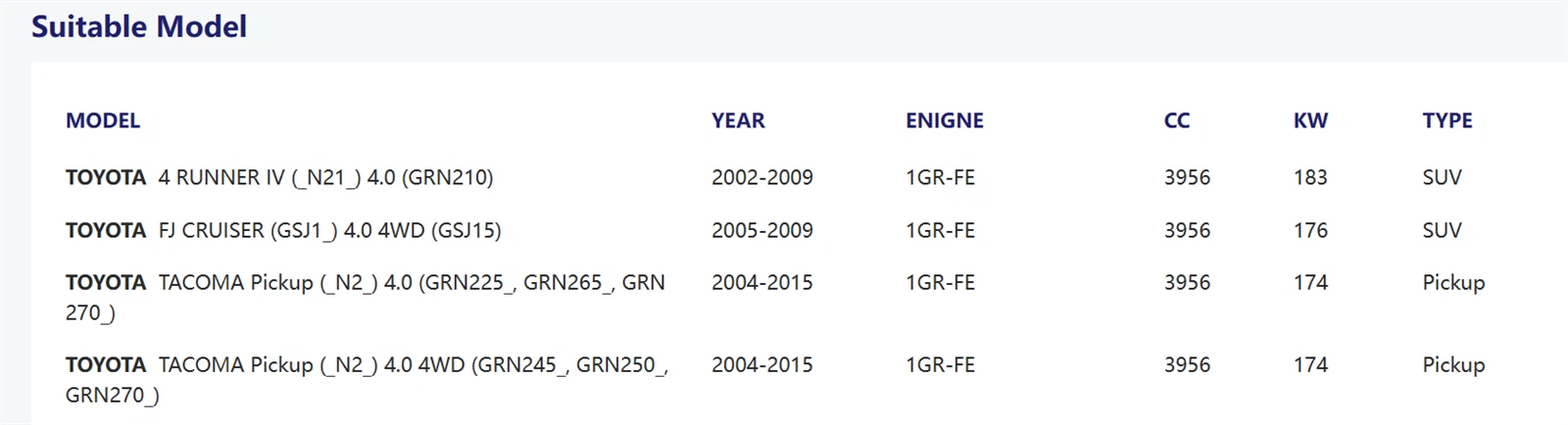

| Suitable Model |
| MODEL |
| YEAR |
| ENIGNE |
| CC |
| KW |
| TYPE |
| TOYOTA 4 RUNNER IV (_N21_) 4.0 (GRN210) |
| 2002-2009 |
| 1GR-FE |
| 3956 |
| 183 |
| SUV |
| TOYOTA FJ CRUISER (GSJ1_) 4.0 4WD (GSJ15) |
| 2005-2009 |
| 1GR-FE |
| 3956 |
| 176 |
| SUV |
| TOYOTA TACOMA Pickup (_N2_) 4.0 (GRN225_, GRN265_, GRN270_) |
| 2004-2015 |
| 1GR-FE |
| 3956 |
| 174 |
| Pickup |
| TOYOTA TACOMA Pickup (_N2_) 4.0 4WD (GRN245_, GRN250_, GRN270_) |
| 2004-2015 |
| 1GR-FE |
| 3956 |
| 174 |
| Pickup |
Professional Manufacturer Of The Auto Water Pump
16100-09470 16100-09471 16100-39406 Auto Water Pump For Toyota Tacoma Engine 1GR-FE Reference Lookup
Find the right Auto Water Pump by entering the OEM number or cross reference number.
We are currently updating our Auto Water Pump cross reference/OEM number database, will improve the Auto Water Pump Search Function Soon.
Please send us your list and we will do the search for you manually.
- +8618958710621
- [email protected]
- 2nd Floor, Building #13, Suifeng Industry Zone, Ouhai, Wenzhou, China
16100-09470 16100-09471 16100-39406 Auto Water Pump For Toyota Tacoma Engine 1GR-FE Application Areas
Working principle of automobile water pump
The water pump bearing and impeller are driven by the pulley to rotate. The coolant in the water pump is driven by the impeller to rotate together. Under the action of centrifugal force, it is directed to the edge of the water pump housing, generating a certain pressure at the same time, and then flows out from the water outlet or water pipe.
As we all know, damage to the water pump will cause the engine temperature to rise abnormally, causing abnormal wear and tear of components. In severe cases, the entire engine may be scrapped.
Symptoms of damaged car water pump
1. Unstable idle speed
Since the car water pump is connected to the belt box to extract cold water from the water tank, if the rotation resistance of the water pump fails, it will cause the car’s speed to jump and become unstable after starting.
2. Coolant leakage
The engine near the water pump is prone to water leakage. At this time, the coolant will leave water marks on the vent hole of the water pump. An engine lacking coolant will have a “high fever”. When the wear is severe, it will smoke or even catch fire.
3. Make abnormal noises
If there is obvious noise in the water pump, it means that it is damaged internally, such as the bearing is damaged or the impeller becomes loose during rotation and gradually separates from the rotating shaft, thus causing this phenomenon.
Therefore, if the water pump is broken, it must be replaced in time to avoid causing greater losses.
